We present the second of a two-part series on illegal gold mining deforestation in the Xingu River Basin, located in the eastern Brazilian Amazon (states of Pará and Mato Grosso). The current report examines mining in protected areas of the Xingu, while Part 1 focused on Indigenous territories (see MAAP #239)
The Xingu Basin is the site of the largest historical concentration of gold mining deforestation in the Brazilian Amazon (see MAAP #235). At the heart of this basin is the Xingu Socio-environmental Diversity Corridor, which is one of the largest continuous blocks (over 26 million hectares) of designated forests on the planet, connecting 24 Indigenous territories and 9 protected areas (see Base Map). Despite the official land designations, the area remains threatened, especially by the expansion of illegal gold mining driven by record high gold prices.
To address this challenge, the Xingu+ Network (Rede Xingu+) was created, a political alliance formed by a coalition of organizations representing the area. This network monitors deforestation and other pressures in the Xingu Corridor monthly, using the radar-based SiRAD X system.
In 2025, the Xingu+ Network partnered with Amazon Conservation, facilitating access to high-resolution optical images (from Planet), allowing for validation of alerts and identification of drivers. This collaboration also incorporates the online public dashboard Amazon Mining Watch.
Both systems, SiRAD X and Amazon Mining Watch, have detected a major expansion of gold mining deforestation since 2018 in the Corridor, including continued illegal activity during 2025. Throughout the report, we present data for both systems, noting their slight differences due to varying methodologies (Note 1), but the overall patterns of both datasets are consistent.
Between 2018 and 2024, the Sirad X monitoring system recorded the loss of around 11,500 hectares of forest within the Indigenous territories and protected areas of the Xingu Corridor (Amazon Mining Watch estimates around 16,000 ha), plus 400 hectares in 2025 (January – September), similar to the estimate of Amazon Mining Watch.
Both monitoring systems have detected recent mining deforestation in 6 protected areas in the Xingu Corridor (Note 2), in addition to the 5 Indigenous territories reported in part 1.
In Part 1, we detailed the recent gold mining deforestation in three of these Indigenous territories (Kuruaya, Baú, and Kayapó).
Here, in part 2, we focus on the recent gold mining deforestation in three of these protected areas (Altamira National Forest, Terra do Meio Ecological Station, and Nascentes da Serra do Cachimbo Biological Reserve) in the Xingu Corridor, including the presentation of a series of high-resolution images.

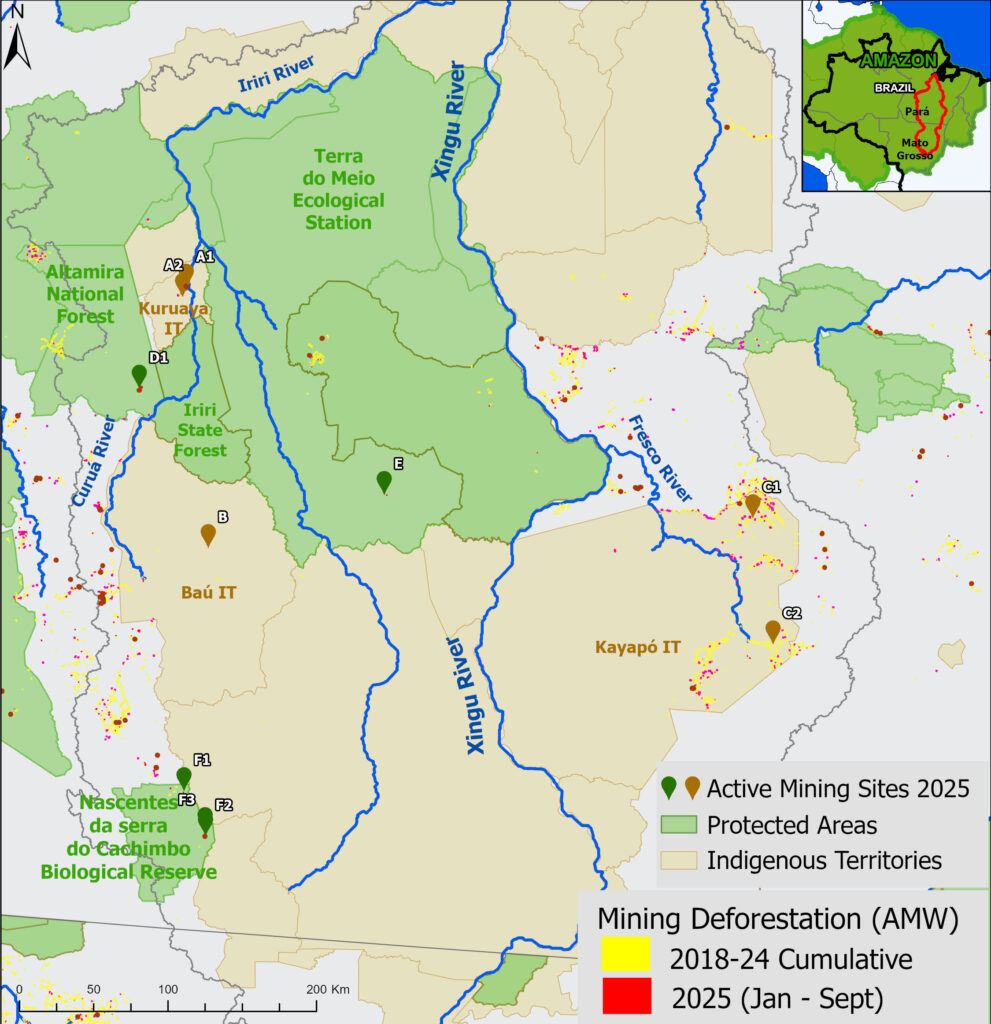

The Base Map indicates the focal areas of this series, with Points A-C covered in the first report (Indigenous territories), and Points D-F in the current second report (protected areas).
Mining in Protected Areas
Altamira National Forest
The Altamira National Forest (located in Pará state) is experiencing expanding illegal mining in three locations with notable increases in 2025. In just the first eight months of 2025, the area affected by illegal mining in the Altamira National Forest has already exceeded the total environmental damage recorded for the entire year of 2024, highlighting the urgent need for enforcement operations in the area.
Mining began in its northwestern and western sections between 2016 and 2018 and expanded 832 hectares by September 2025. Figure D1 shows recent mining deforestation in the western section, between October 2024 (left panel) and September 2025 (right panel). Although there are mining exploration applications for these sections, mining is not permitted in the area’s Management Plan or in its creation decree (Decree No. 2483, 1998). See Note 3 for comparison with AMW.
The mining in the southeastern section began in 2024 and expanded to a cumulative total of 36 hectares by October 2025, according to the Xingu+ Network monitoring. Gold mining in the southeastern section accounted for 45.7% of the area deforested by mining operations in 2025 within the National Forest, with the peak of its expansion occurring in June. Figure D2 shows recent mining deforestation in this section, between September 2024 (left panel) and September 2025 (right panel).
Terra do Meio Ecological Station
The Terra do Meio Ecological Station has emerged as a new mining front. First identified in September 2024, the mining rapidly expanded to a cumulative total of 30 hectares by the end of 2025, according to the Xingu+ Network monitoring (see Note 4 for comparison with AMW). Figure E shows this expansion between December 2024 (left panel) and September 2025 (right panel).
Although the Terra do Meio Ecological Station faces other illegal activities, such as deforestation, the presence of illegal mining operations within its boundaries is particularly concerning. This case not only demonstrates how far the offenders have encroached on a strictly protected area, but also highlights their high level of operational capacities. This combination increases the risk that the activity will spread, causing environmental degradation in other parts of the protected area.
Cachimbo Mountain Headwaters Biological Reserve
The Cachimbo Mountain Headwaters Biological Reserve is strategically located along the BR-163 highway in Pará. It is a strictly protected conservation area established by Decree No. – May 20, 2005, and is located between the municipalities of Altamira and Novo Progresso, in the Tapajós-Xingu interfluve, and adjacent to the Menkragnoti and Panará Indigenous Lands on its eastern boundary.
Illegal mining in the Biological Reserve began to expand, primarily starting in January 2025. At that time, the mining site—which had previously covered an area of two hectares—was the subject of a complaint filed in Official Letter No. 01/2025 by Rede Xingu+. In June, illegal mining in the Biological Reserve was reported again via Official Letter No. 15/2025, following an expansion of 18 ha, and in July, via Official Letter No. 18/2025, following a further expansion of 6.82 ha, totaling 26.82 ha.
Two mining sites are located in the northeastern region of the Rebio, opened in November 2024 and March 2025, and another site in the eastern region, opened in June 2025. It is worth noting that the site in the eastern region was also the subject of a complaint in Official Letter No. 18/2025, as it is located on and causing pollution in a tributary of the Pitxatxá River, a river that borders the Menkragnoti Indigenous Territory and where six indigenous villages of the Kayapó people are located.
Illegal mining began in December 2024, expanding to a cumulative total of 19 hectares as of September 2025 across several locations in the protected area, according to the Xingu+ Network monitoring (see Note 5 for comparison with AMW).
Even after enforcement operations, gold mining activity continues to expand within the Cachimbo Mountain Headwaters Biological Reserve. Figures 1 and 2 show the rapid mining-deforestation expansion up to November 2025, and Figure 3 shows the construction of a landing strip between July and August, providing access to the gold mines in the eastern region.
Figure F1 shows recent mining deforestation in the northeast part of the Biological Reserve, between December 2024 (left panel) and November 2025 (right panel).
Figure F2 shows recent mining deforestation in the eastern part of the Biological Reserve, between June 2025 (left panel) and November 2025 (right panel).
Figure F3 shows a new landing strip (opened in August 2025) in the eastern part of the Biological Reserve, between June 2025 (left panel) and November 2025 (right panel).
Conclusion and Recommendations
Based on the information presented above (and the previous MAAP #239), it is clear that illegal mining in the Xingu basin is not an isolated activity. It has spread to both Indigenous territories and protected areas, with illegal activity advancing into new territories, indicating the existence of a support network that provides the operational capacity and infrastructure necessary for the activity. Illegal mining poses a direct threat to protected areas by both deforestation and the contamination of rivers through the use of mercury, which affect sensitive ecosystems and the populations that depend on these resources.
Below, we propose a number of recommendations to Brazilian authorities with regards to: (i) the design of enforcement actions; (ii) monitoring and restoration (iii) traceability of gold supply chains.
(i) The design of enforcement actions;
Isolated enforcement actions have not been sufficient to guarantee the long-term protection of Protected Areas. Therefore, it is essential to establish a strategy coordinated with other agencies to dismantle the logistical structure that operates and fuels illegal mining. Alongside this, the structuring of preventive measures is fundamental.
- Establish permanent advanced bases (operated by government agencies such as ICMBio) in the most critical protected aeass, ensuring a constant presence to break the cycle of miners returning after eviction operations.
- Focus on disabling airstrips and seizing heavy machinery (hydraulic excavators) within protected areas, coordinating with National Civil Aviation agency (ANAC) and National Oil, Petroleum and Biofuel Agency (ANP) to block clandestine airfields and fuel stations in the areas surrounding protected lands.
- Strengthen oversight in the surroundings of protected areas to prevent legalized mining in nearby areas from serving as a front for illegal extraction within the boundaries of protected areas. This process would include the National Mining Agency (ANM), with oversight from other agencies.
(ii) Monitoring and restoration
Strengthening surveillance and environmental recovery is essential to discourage the return of illegal miners.
- Support management councils and associations of riverine and traditional populations in implementing surveillance protocols, recognizing the role of these communities in maintaining the integrity of sustainable-use protected areas.
- Implement Degraded Area Recovery Plans (PRADs) focused on the revegetation of riparian forests and the containment of siltation caused by mining sediments.In federal areas, it would be ICMBio; in state conservation units, the Institute for Forest and Biodiversity Development of the State of Pará (IDEFLOR-Bio).
(iii) Traceability of gold supply chains.
Implement a data-cross-referencing system that automatically blocks the issuance of Electronic Fiscal Invoices (NF-e) for minerals whose declared origin overlaps with Protected Area polygons. Improve legislation regarding documentation of sourcing area in traceability mechanisms, making it more difficult to “launder” minerals illegally extracted from Protected Areas.
Notes
1. Methodology of monitoring systems
For Sirad X monitoring, radar images from the Sentinel-1 satellite are used, which are processed by a series of algorithms on the Google Earth Engine (GEE) platform, along with optical images from the Landsat-9 satellite (OLI-2 sensor) and Sentinel-2 satellite (MSI sensor). A team of analysts examines the monitored area, visually searching for anomalies in the produced images. Each deforestation polygon is evaluated based on its proximity to other areas of degradation and the history of the region, and, if necessary, people familiar with the location are contacted to confirm the deforestation. Field knowledge is fundamental for data validation.
For Amazon Mining Watch, the mine detector is an artificial neural network, which we train to discriminate mines from other terrain by feeding it hand-labeled examples of mines and other key features as they appear in Sentinel-2 satellite imagery. The network operates on square patches of data extracted from the Sentinel-2 L1C data product. Each pixel in the patch captures the light reflected from Earth’s surface in twelve bands of visible and infrared light. We average (median composite) the Sentinel data across a period of many months to reduce the presence of clouds, cloud shadow, and other transitory effects. During run time, the network assesses each patch for signs of recent mining activity, and then the region of interest is shifted by half a patch width for the network to make a subsequent assessment. This process proceeds across the entire region of interest.
2-5. Comparisons with Amazon Mining Watch
2. Altamira National Forest, Terra do Meio Ecological Station, Iriri State Forest, Riozinho do Anfrísio Extractive Reserve, Nascentes da Serra do Cachimbo Biological Reserve, and Rio Iriri Extractive Reserve.
3. As a comparison, Amazon Mining Watch indicates the total mining deforestation of 620 hectares in Altamira National Forest between 2018 and 2025.
4. As a comparison, Amazon Mining Watch indicates the total mining deforestation of 3 hectares in Terra do Meio Ecological between 2018 and 2025.
5. As a comparison, Amazon Mining Watch indicates the total mining deforestation of 51 hectares in Cachimbo Mountain Headwaters Biological Reserve between 2018 and 2025.
Acknowledgments
This report is part of a series focusing on gold mining in the Amazon, through a strategic collaboration between Amazon Conservation and regional partners, with support from the Gordon and Betty Moore Foundation. In this case, we thank our partner Instituto Socioambiental (ISA) for leading this report.
